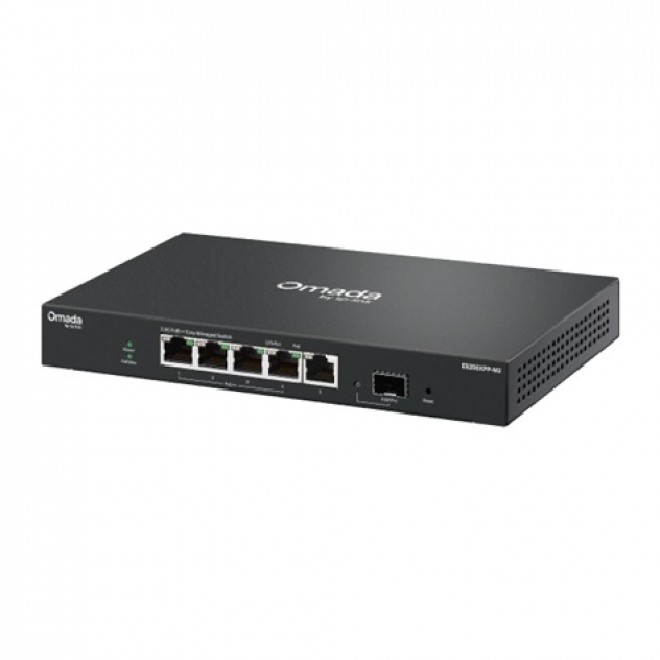

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

HARDWARE FEATURES

Interface

• 5 2.5 Gbps RJ45 Ports (4 802.3af/at/bt-compliant PoE++)
• 1 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

• Fanless

Installation

• Desktop
• Wall Mount

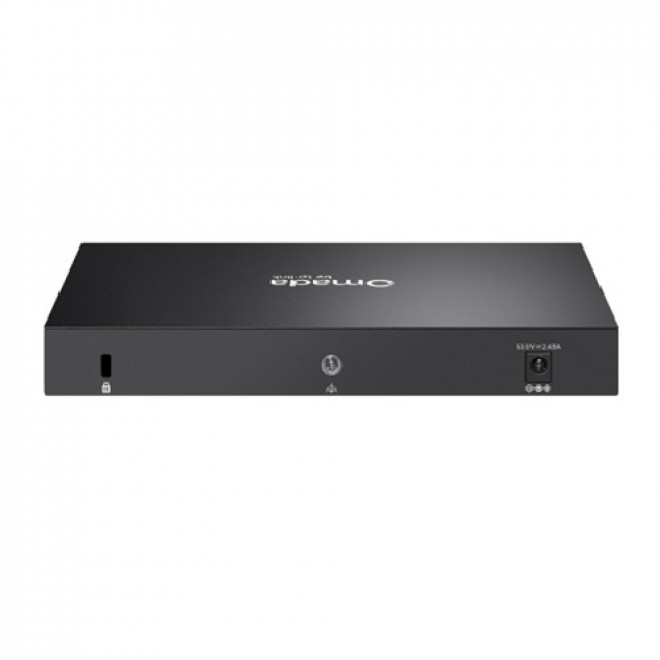

Physical Security Lock

Power Supply

• DC Power Adapter (Output: 53.5 VDC / 2.43 A)

PoE Ports (RJ45)

• Standard: 802.3af/at/bt PoE++ compliant
• PoE Ports: 4 Ports
• PoE Budget: 120W available for all PoE++ ports, 90W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery

Dimensions ( W x D x H )

• 8.2 5.0 1.0 in (209 126 26 mm)

Surge Protection

• 6 kV

PERFORMANCE

Packet Buffer Memory

• 640 KB

Jumbo Frame

• 10 KB

Switching Capacity

• 45 Gbps

Packet Forwarding Rate

• 33.48 Mpps

MAC Address Table

• 16K

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode

- WRR (Weighted Round Robin)

• Queue Weight Config
• Bandwidth Control

- Port-Based Rating Limit

• Storm Control

- Multiple Control Modes (kbps/pps)

- Broadcast/Multicast/Unknown-Unicast Control

L2 Features

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- One-to-One

- Many-to-One

- Ingress/Egress/Both

• Port Statistics

- Port Mirror Status

- Traffic Statistics

• 802.1ab LLDP

L2 Multicast

• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

VLAN

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN

- Max 32 VLAN Groups

- 4K VID

Transmission Method

• Store-And-Forward

Warranty Period: 5-Year
