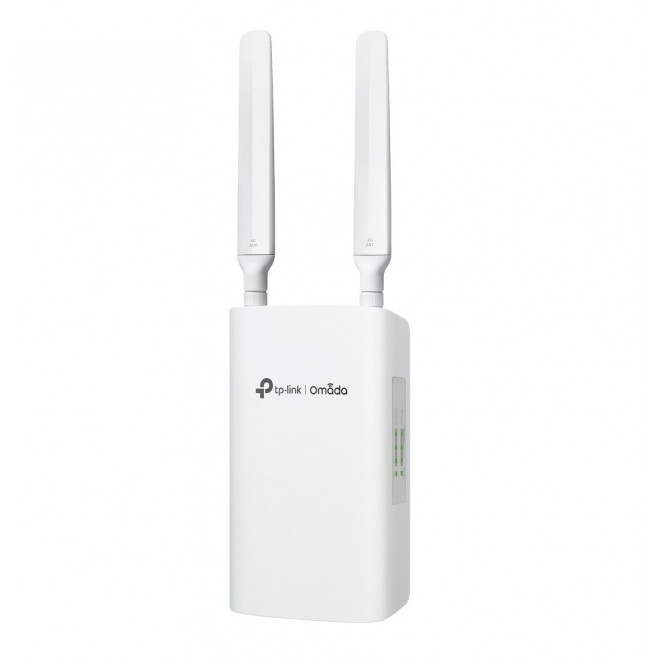

TP-Link ER703WP-4G-Outdoor Omada 4G+ AX3000 Wi-Fi 6 Gateway

KEY FEATURES:

• 4G+ Cat6 speeds up to 300 Mbps

• AX3000 Wi-Fi 6:

  • Up to 2402 Mbps (5 GHz)

  • Up to 574 Mbps (2.4 GHz)

• 3× Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)

• 1 × Nano SIM Card Slot

• Powered by 802.3at/bt PoE or 12V/2A DC Adapter

• Load Balancing with 4G & Ethernet WAN auto-backup

• Supports multiple VPN protocols: IPSec, L2TP, PPTP, OpenVPN, GRE, WireGuard, SSL

• Centralised management via Omada ecosystem

• IP55-rated for outdoor durability

• WARRANTY PERIOD: 3-Year

4G

• Network Type: LTE Band of EU:

  • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32

  • 4G LTE-TDD: B38/B40/B41

  • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8

• Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41, etc.

• SIM Type: 1× Nano SIM Card

• Frequency: Downlink: 300 Mbps; Uplink: 50 Mbps

SECURITY

• DPI: Application control via DPI / Updated app library

• Access Control: Source/Destination IP Based

• Filtering: Web Group Filtering, URL Filtering, Web Security

• ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding

• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan, Block Ping from WAN

HARDWARE FEATURES

• Interface: 3 Gigabit WAN/LAN Ports

• Network Media: 10BASE-T, 100BASE-TX, 1000BASE-T (UTP cat 5e/6, max 100 m)

• Button: Reset Button

• Power Supply: 802.3at/bt PoE; 12VDC / 2A Power Adapter

• Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160)

• Flash: 256 MB NAND

• DRAM: 512 MB DDR4

• LED: 4G Signal, WLAN, WAN/LAN, SYS

• Dimensions: 174.8 × 100.4 × 38.7 mm

• Antenna: Built-in Wi-Fi; 2 × LTE detachable antennas

• Mounting: Pole/Wall-Mounting

• Max. Power Consumption: PoE: 62.9W; DC: 16.6W

PERFORMANCE

• DPI Throughput: TCP: 1131 Mbps; UDP: 974 Mbps

• GRE: Unencrypted: 450.3 Mbps; Encrypted: 277.6 Mbps

• WireGuard VPN: 462.8 Mbps

• Concurrent Sessions: 120,000

• New Sessions/Second: 3,800

• NAT (Static IP): 945.9/950.2 Mbps

• NAT (DHCP): 947.3/949.4 Mbps

• NAT (PPPoE): 916.9/946.3 Mbps

• NAT (L2TP): 878.9/778.9 Mbps

• NAT (PPTP): 852.2/775.9 Mbps

• IPsec VPN Throughput: ESP-SHA1-AES256: 568.3 Mbps; ESP-SHA512-AES256: 550.0 Mbps

• OpenVPN: 85.1 Mbps

• L2TP VPN Throughput: Unencrypted: 858.7 Mbps; Encrypted: 467.0 Mbps

• PPTP VPN Throughput: Unencrypted: 876.2 Mbps; Encrypted: 182.6 Mbps

• SSL VPN Throughput: 86.6 Mbps

• 66 Byte Packet Forwarding Rate: 1,453,489 pps

• 1,518 Byte Packet Forwarding Rate: 81,275 pps

WIRELESS FEATURES

• Seamless Roaming, Mesh, OFDMA, Beamforming, MU-MIMO

• Rate Limit by SSID/Client, Airtime Fairness

• Encryption: WPA/WPA2/WPA3 (Personal & Enterprise)

• Multiple SSIDs: 16 total (8 per radio)

• Guest Network Supported

BASIC FUNCTIONS

• WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP

• MAC Clone: WAN Address Modification

• DHCP: Server, DHCPv6 PD (Standalone), Custom Options, Reservations

• SMS: Send/Receive

• IPv6: SLAAC, DHCPv6, PPPoE, 6to4Tunnel, etc.

• VLAN: 802.1Q VLAN

• IPTV: IGMP Proxy, Custom Mode, Bridge Mode

ADVANCED FEATURES

• Access Control: IP/Port/Protocol/Domain Filtering

• Advanced Routing: Static, Policy, RIP, OSPF

• Bandwidth Control: IP-Based

• Load Balance: Intelligent, Application Optimized, Link Backup

• NAT: One-to-One, Multi-Net, DMZ, Virtual Server, Port Triggering, ALG, UPnP

• Session Limit: IP-Based

VPN

• GRE: Standalone Mode only

• SSL VPN: 50 Tunnels

• IPsec VPN: 100 Tunnels, AES up to 256-bit, IKEv1/v2, Failover, PFS

• PPTP VPN: Server & Client (10), 50 Tunnels, MPPE Encryption

• L2TP VPN: Server & Client (10), 50 Tunnels, L2TP over IPSec

• OpenVPN: Server & Client (5), 55 Tunnels, Certificate + Account

• WireGuard VPN: 20 Tunnels

AUTHENTICATION

• No Auth, Simple Password, Hotspot, Radius, LDAP, External Portal

MANAGEMENT FEATURES

• Omada App: Supported

• Centralized Management: Omada Cloud, Software/Hardware Controller

• Cloud Access: Supported

• Service: Dynamic DNS (Dyndns, No-IP, etc.)

• Maintenance: Web UI, Remote, SNMP, Ping, CLI, Syslog, Scheduler

• Other Features: Device Discovery, Network Monitoring, Unified Configuration

OTHERS

• Certification: CE, FCC, RoHS

• Package Content: ER703WP-4G-Outdoor, Mounting Kits, Quick Installation Guide

• System Requirements: Windows, macOS, NetWare, UNIX, Linux

• Environment:

  • Operating Temp: -30 °C to 60 °C

  • Storage Temp: -40 °C to 70 °C

  • Operating Humidity: 5% to 95% non-condensing

  • Storage Humidity: 5% to 90% non-condensing
