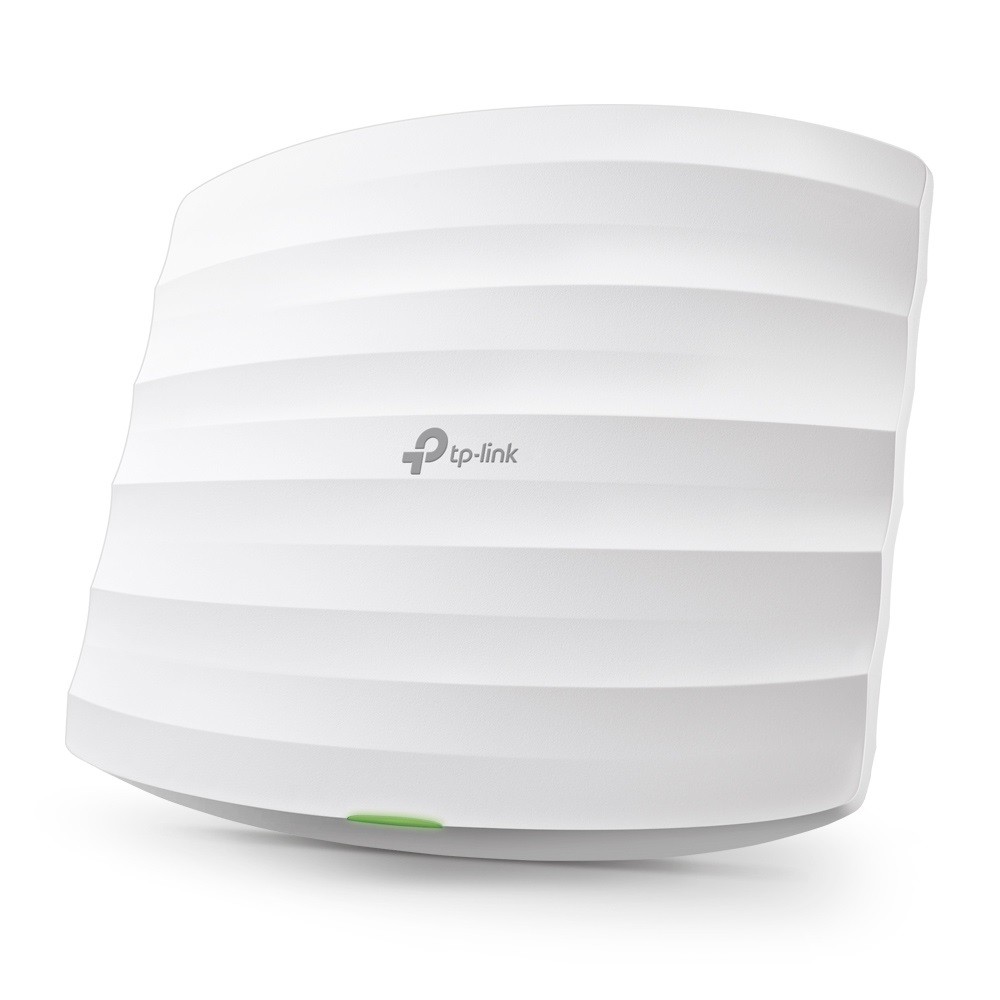

TP-Link EAP225 AC1200 Wireless Dual Band Gigabit Ceiling Wall Mount Access Point 1200Mbps PoE 1xGbps LAN Internal Omni Antenna Load balance Multi-SSID

Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Support Power over Ethernet(802.3af) for convenient and affordable installation
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 10.15 W
Antenna Type Internal Omni
2.4GHz: 2* 4dBi
5GHz: 2*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE：
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)
