- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.1
- Smart Antennas – Uses intelligent algorithms to auto-detect your devices’ locations and adjust antennas’ direction for all-round stable signals.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- EasyMesh-Compatible - Works with EasyMesh-compatible routers to create a whole home seamless mesh network.3

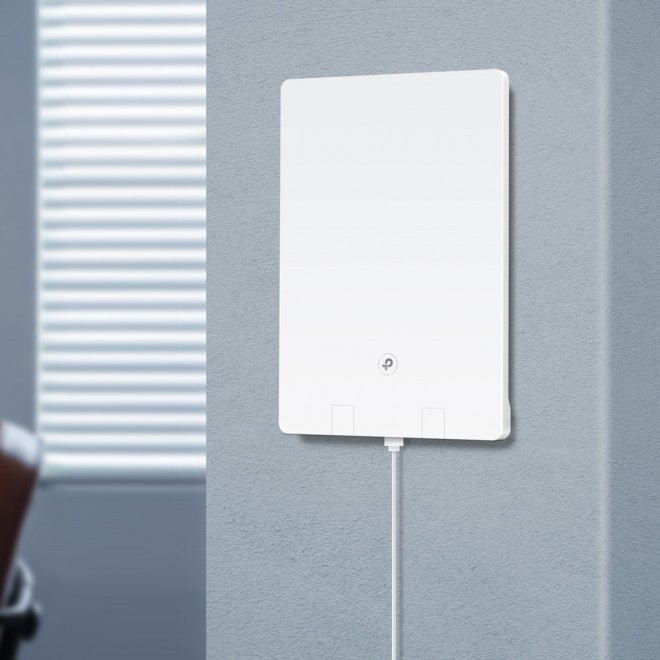

- Flexible Installation – Easy to stick or mount on the wall with 3M adhesives and the attached plastic bracket.
WIRELESS FEATURES
- Standards and Protocols: Wi-Fi 6, IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz)
- WiFi Speeds: AX3000 (5 GHz: 2402 Mbps, 2.4 GHz: 574 Mbps)
- WiFi Range: 3 Bedroom Houses
- Coverage Features:
- Beamforming – Concentrates signal strength to clients
- High-Power FEM – Enhances signal coverage
- WiFi Capacity: High
- Band: Dual-Band
- Technologies: OFDMA, Airtime Fairness, 4 Streams
- Working Modes: Router Mode, AP Mode
SECURITY FEATURES
- Network Security: HomeShield Security
- Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
- Guest Network: 1× 5 GHz, 1× 2.4 GHz
- VPN Server: PPTP, OpenVPN
- WiFi Encryption: WPA/WPA2, WPA3, WPA/WPA2-PSK
HARDWARE FEATURES
- Input Power: 12V/2A
- Ethernet Ports: 1× Gigabit WAN Port, 1× Gigabit LAN Port
- Buttons: WPS Button, Reset Button
SOFTWARE FEATURES
- Protocols: IPv4, IPv6
- Service Kits: HomeShield – Learn More>
- EasyMesh: Supported – Eliminates Wi-Fi dead zones and ensures stable roaming. Learn More about EasyMesh>
- Parental Controls: Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
- WAN Types: Dynamic IP, Static IP, PPPoE, PPPoE + Dynamic IP, PPPoE + Static IP, L2TP + Dynamic IP, L2TP + Static IP, PPTP + Dynamic IP, PPTP + Static IP
- Quality of Service: QoS by Device
- Cloud Service: FOTA Firmware Upgrade, TP-Link ID, DDNS
- NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
- IPTV: Profile, Bridge, Custom, Allowed range of VLAN ID
- DHCP: Server, Address Reservation, Client List
- DDNS: TP-Link, NO-IP, DynDNS
- Management Features: Tether App, Webpage – Check Web Emulator>
OTHER
- System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40~60℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90%
TEST DATA
WiFi Transmission Power:
- CE: <20 dBm (2.4GHz), <23 dBm (5.15~5.35GHz), <30 dBm (5.47~5.725GHz)
- FCC: <30 dBm (2.4GHz & 5.15~5.825GHz)
WiFi Reception Sensitivity:
- 5GHz - Band 1 & 2 & 3: Multiple MCS rates ranging from -97 dBm (HE20 MCS0) to -58 dBm (HE160 MCS11)
- 2.4GHz: Ranges from -96 dBm (6 Mbps) to -62 dBm (HE40 MCS11)
PHYSICAL
Dimensions (W×D×H): 8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm)
Package Content:

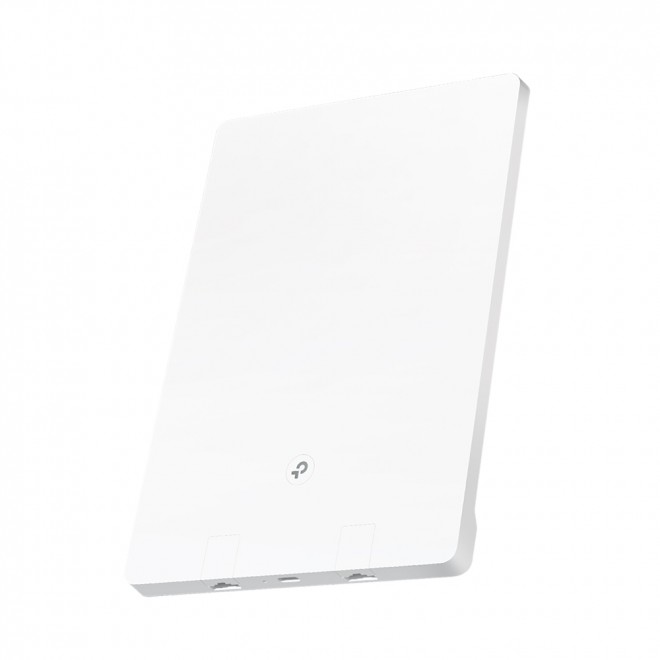

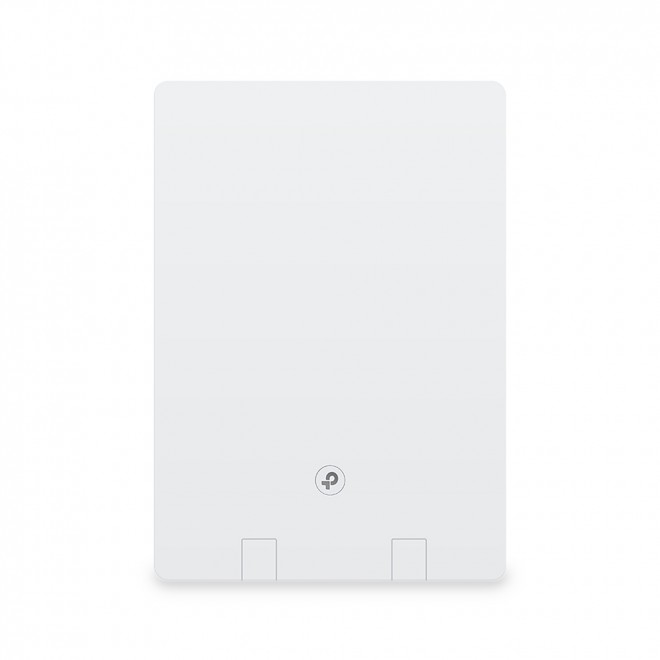

- Wireless Router Archer Air R5
- Quick Installation Guide
- Power Adapter

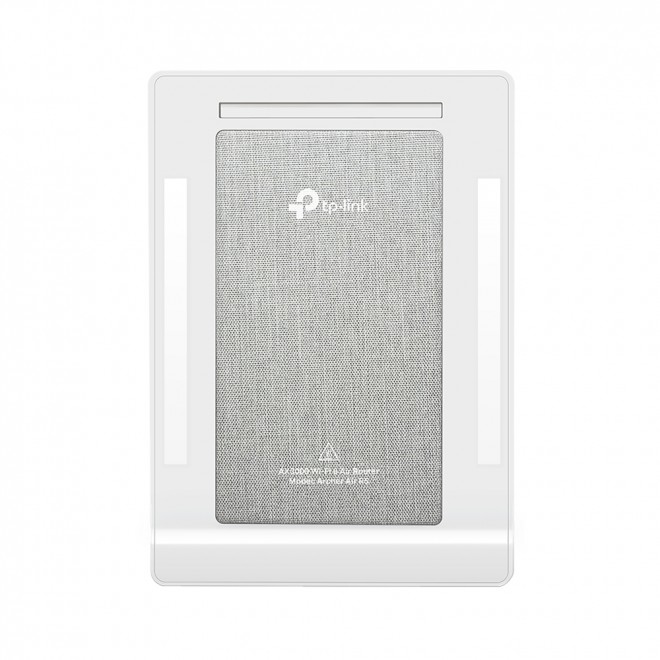

- Plastic Bracket
- Gigabit Network Cable
- Installation Accessories
