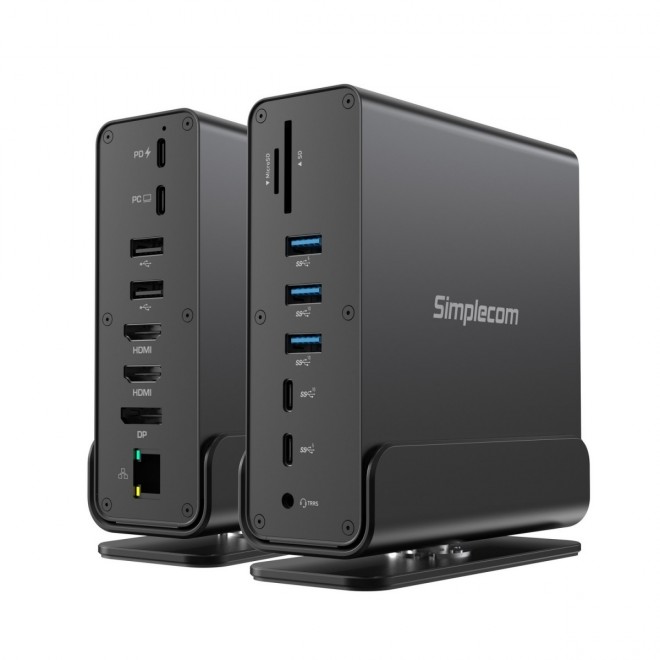

Simplecom CHT815 15-in-1 USB-C 4K Triple Display MST Docking Station with Dua

Specifications

Material: Aluminum
Host Interface: USB-C Female
USB-A Data Ports: 2x USB 480Mbps, 1x USB 5Gbps, 2x USB 10Gbps
USB-C Data Ports: 1x USB 5Gbps, 1x USB 10Gbps
Display Ports: 2x HDMI 2.0, 1x DP 1.4
HDMI Resolution: up to 4K@60Hz (3840×2160)
DP Resolution: up to 4K@60Hz (3840×2160)
HDCP Support: HDCP 2.3 compliant, backwards compatible
Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Audio Port: 4-Pole TRRS 3.5mm Audio Jack (Stereo&Mic Combo)
Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
PD Charging: 1x USB-C Female (for charging only), up to 100W
Operation Temperature: 0 – 50°C
Weight: 350g
Dimension: 12.6cm(13.8cm*) x 12.1cm x 4.2cm (*with vertical stand)
System Requirements

Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
Thunderbolt USB-C port and USB4 port are recommended
Windows 10 or above for MST and extended screens support
macOS does not support MST technology and will only support one extended mode output
Laptop GPU with DP1.4 supports up to 3x extended screens
Laptop GPU with DP1.2 supports up to 2x extended screens
For 3x extended screens at 4K resolution, DP 1.4 and DSC (Display Stream Compression) are required for laptop GPU

Important Note

Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function.
Laptop GPU with DP1.2 supports 2x extended screens only, laptop GPU with DP1.4 supports 3x extended screens.
For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power.
Package Contents

1× 15-in-1 Docking Station
1x USB4 Cable
1x Vertical Stand
1x User Manual
