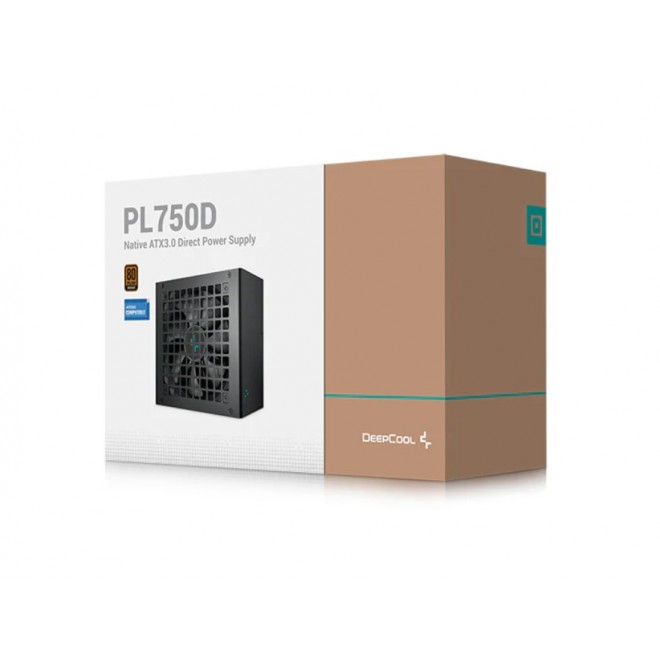

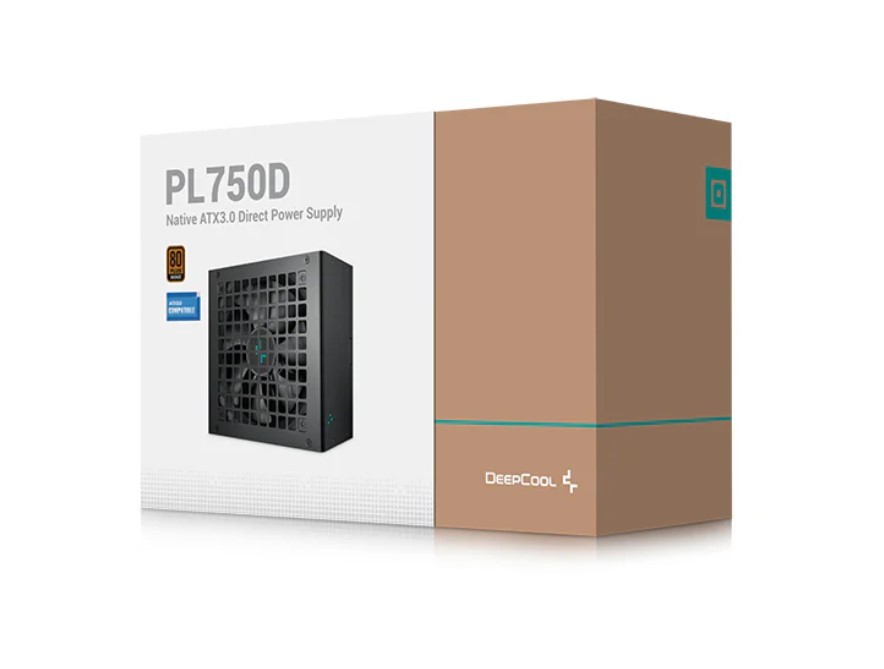

PL750DThe PL750D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
Technical Spec
Type ATX12V V3.0
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80Plus Bronze
Fan Size 120mm
Fan Bearing HYB(Hydro Bearing)
Topology Active PFC+DC to DC
Capacitors Chinese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥85% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0 - 40℃
Regulatory CE/FCC/CCC/RCM/EAC/BIS/
CAN ICES-003(B)/NMB-003(B) /TUV-RH
